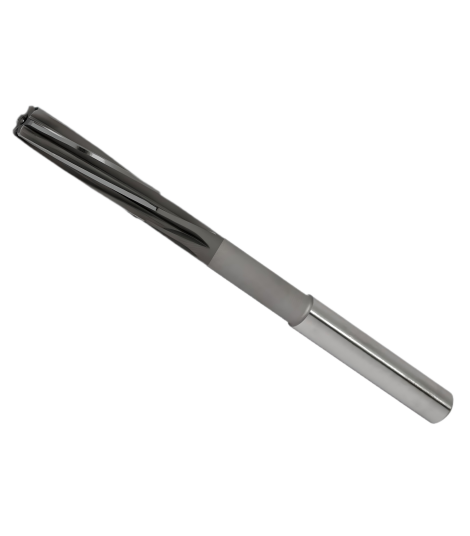

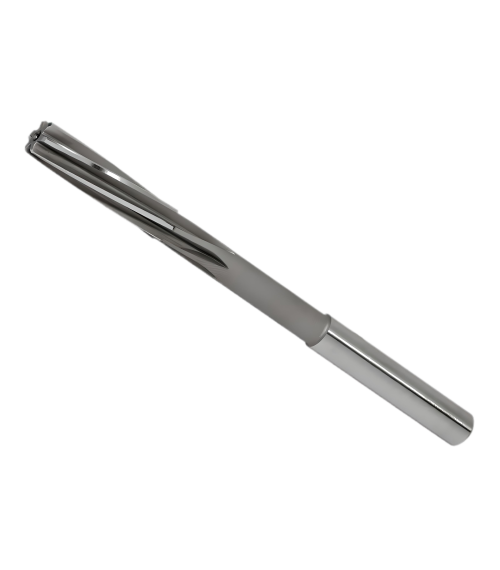

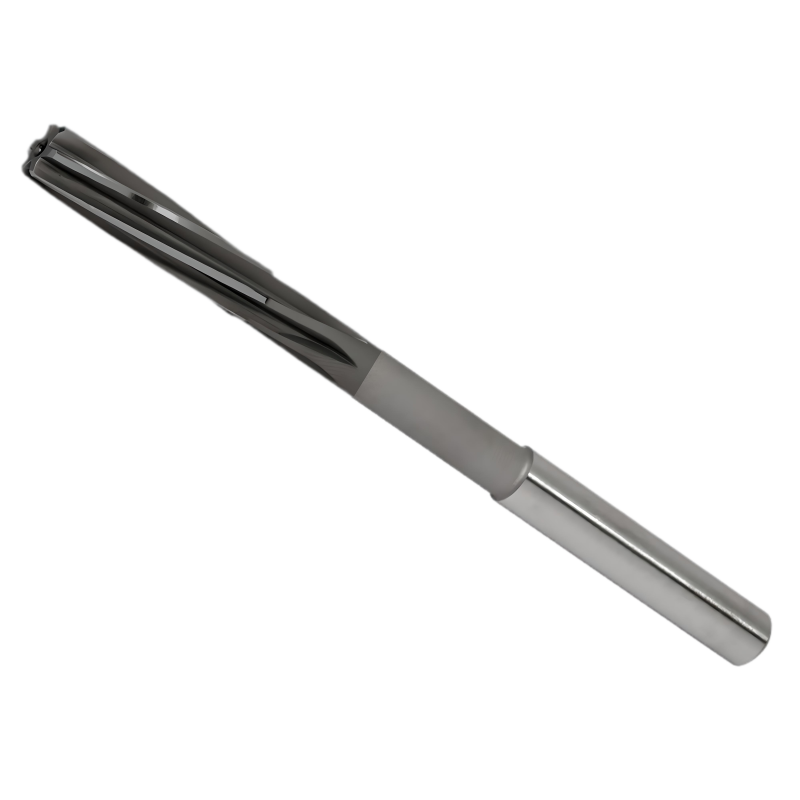

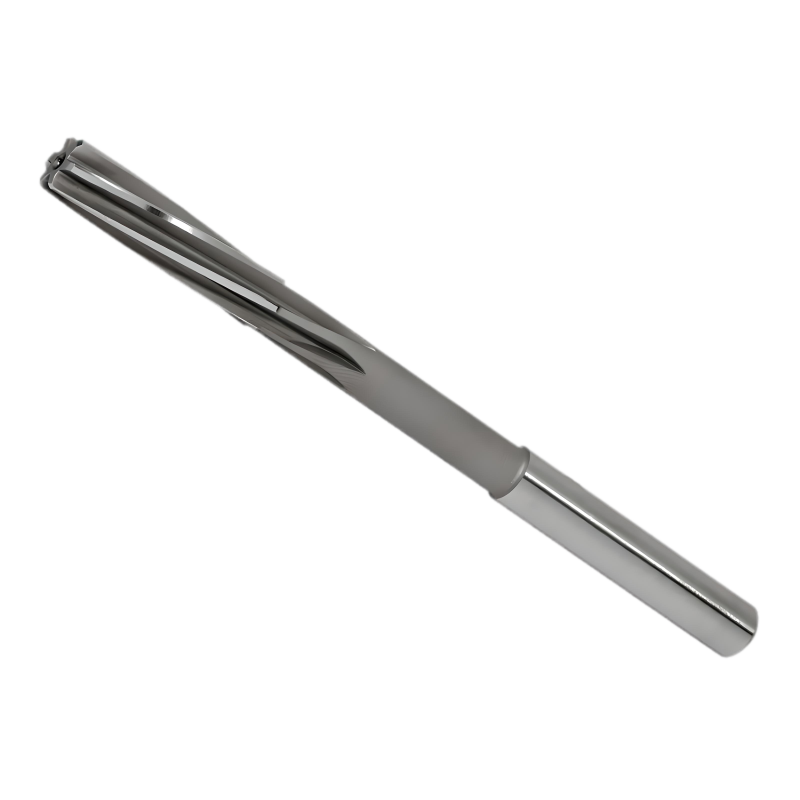

DIN 212 High-Precision Industrial Reamers

Introduction

RE-AL's DIN 212 high-precision industrial reamers are the epitome of Swiss engineering excellence. Crafted with meticulous attention to detail, these reamers are designed to meet the highest standards of precision and durability. Whether you're in the automotive, aerospace, medical, energy, watch, or precision manufacturing industry, RE-AL's reamers offer unparalleled performance and reliability.

Technical Specifications

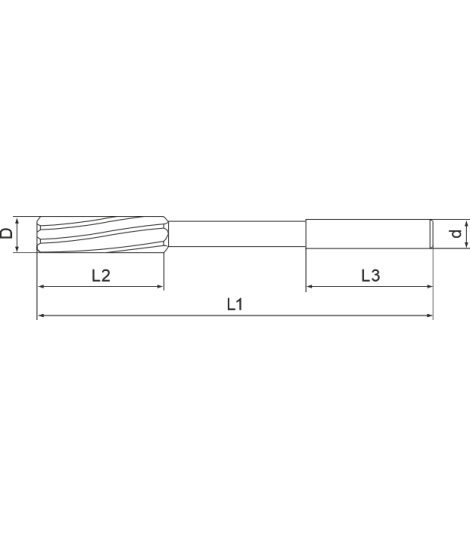

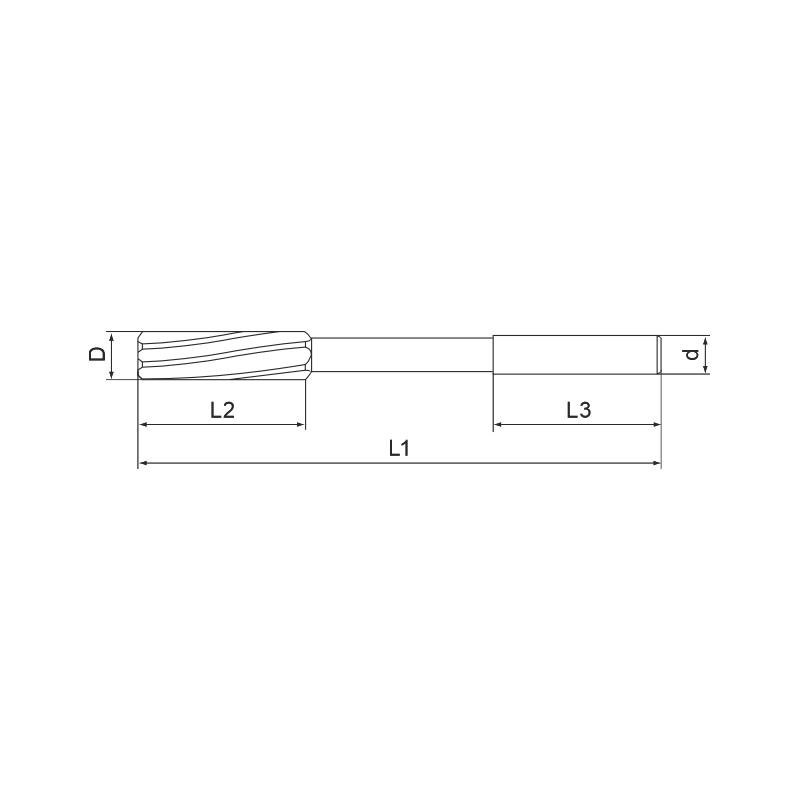

DIN 212 reamers are available in diameters ranging from 0.60 mm to 20.05 mm, with increments as fine as 0.01 mm. These reamers are manufactured from HSS-E (High-Speed Steel with Cobalt), ensuring superior hardness and wear resistance. The reamers feature a left-hand spiral (7-8°) and right-hand cutting design, with tolerances of 0/+0.003 to 0.004 mm. The lead angles are available in 60° and 45°, depending on the diameter.

ACUREA Coating Advantage

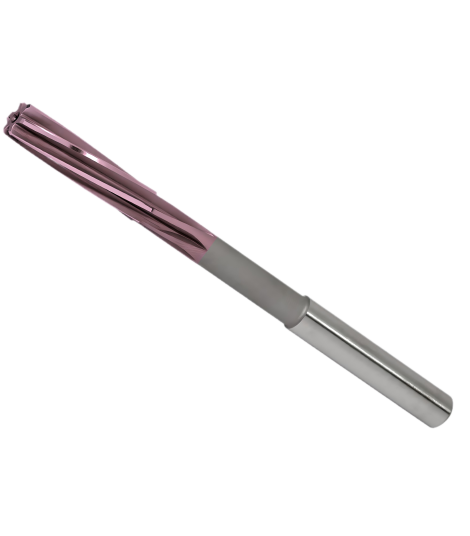

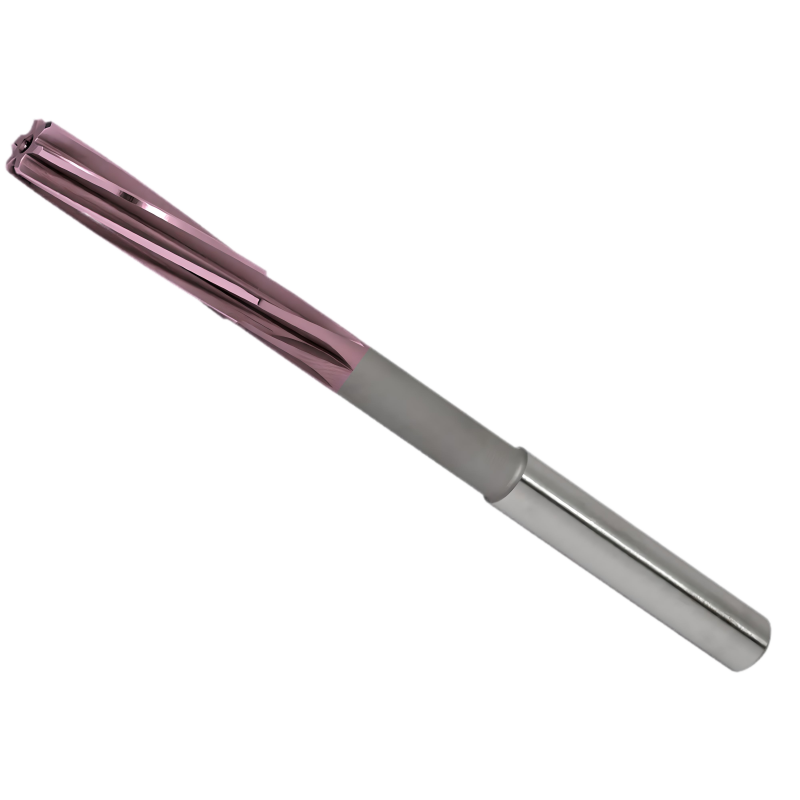

One of the standout features of RE-AL's DIN 212 reamers is the ACUREA coating. This advanced coating significantly enhances the tool's performance by providing exceptional wear resistance and reducing friction. The result is a longer tool life and improved surface finish on the machined parts. Whether you're working with tough materials or require high-speed machining, the ACUREA coating ensures consistent and reliable results.

Applications Across Key Industries

RE-AL's DIN 212 reamers are versatile tools used across various industries:

• Automotive: Ideal for precision machining of engine components, transmission parts, and other critical automotive parts.
• Aerospace: Ensures high precision and reliability in the manufacturing of aircraft components.
• Medical: Perfect for creating precise and smooth surfaces in medical devices and implants.
• Energy: Suitable for machining components used in energy production and distribution.
• Watch and Precision Manufacturing: Essential for the intricate and precise machining required in watchmaking and other precision industries.

Diameter Options and Tolerances

The reamers are available in a wide range of diameters, from 0.60 mm to 20.05 mm, with H7 tolerance. This extensive range allows for precise machining of various hole sizes, ensuring a perfect fit for your specific application.
