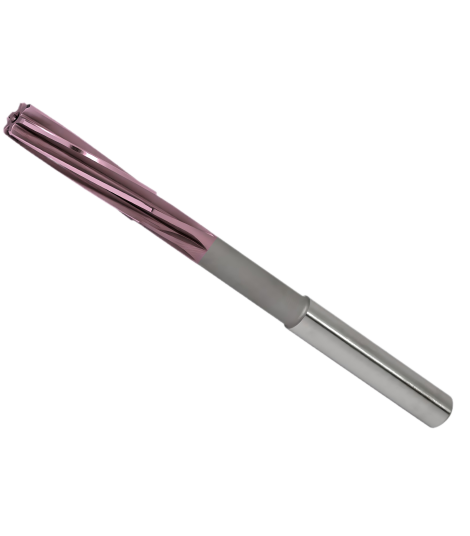

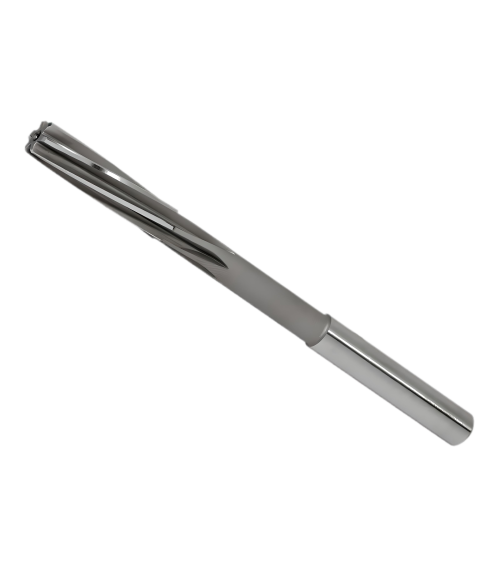

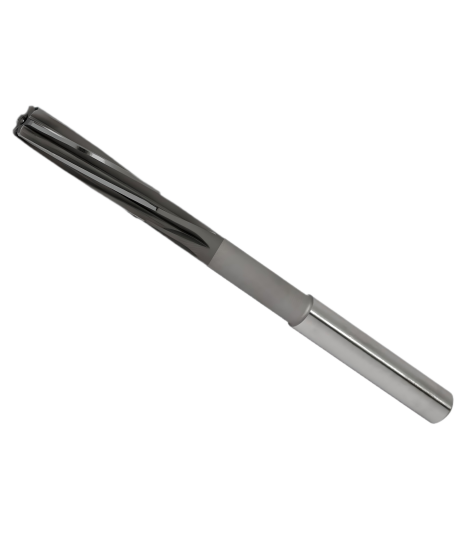

[ACUZ-04.060] Machine reamers DIN 212 DØ 04.06-04.25 (HSS-E, ACUREA, H6, DIN 212, 4.06)

Precision machine reamers HSS-E with or without ACUREA hard surface coating, straight NC-shank h6, left hand spiral 7-8°, right hand cutting, Ø from 0.60 up to 20.05 mm in 0.01 mm increments available from stock (also in H7 tolerance). Tolerances 0/+0.003 to 0.004 – lead angle 60° and 45° (depending on Ø).

Net price CHF 40.60

Diameter DØ:

Material:

HSS-E There is no stock in Material HSS-E There is stock in other combinations

Tolerance:

Coating:

Norm:

DIN 212 There is no stock in Norm DIN 212 There is stock in other combinations

Quantity

Request quotation

Security policy

Delivery policy

Description

DIN 212 High-Precision Industrial Reamers

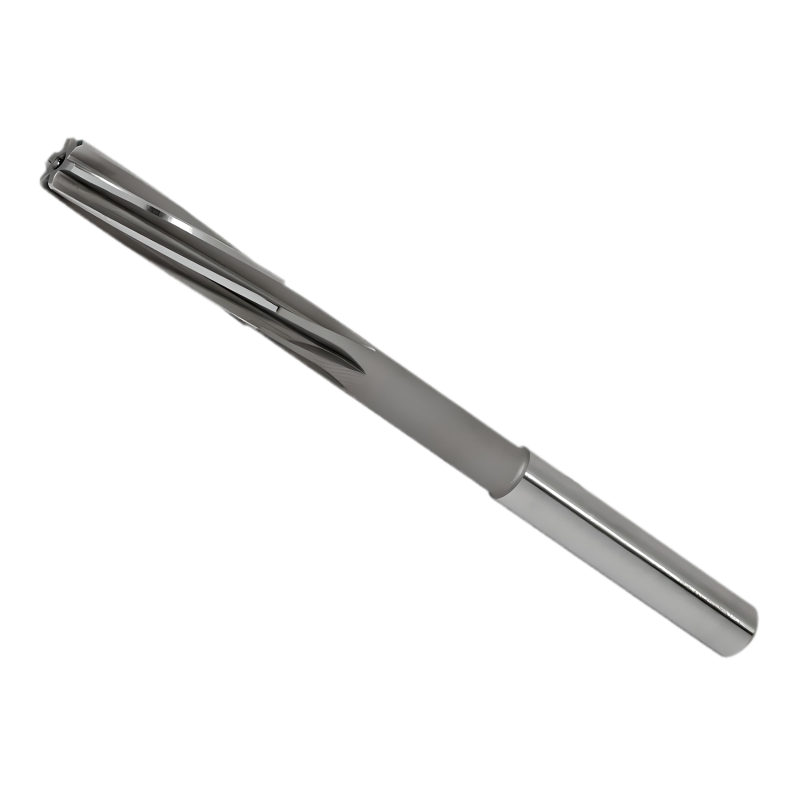

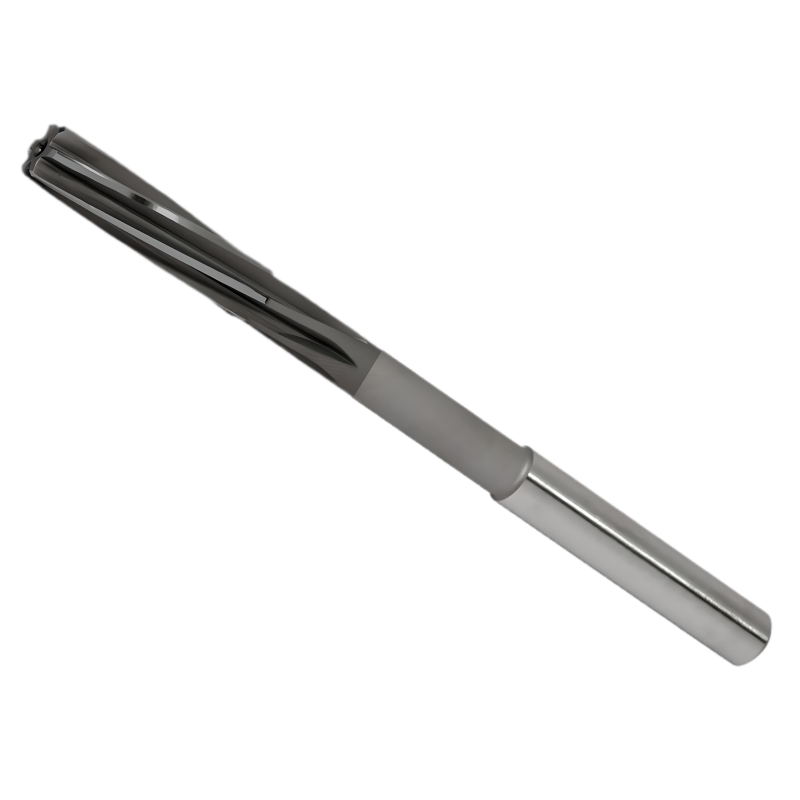

Name: Machine reamers DIN 212 DØ 04.06-04.25
Brand: RE-AL
SKU: 20
Price: 40.6 CHF
Availability: InStock

Introduction

RE-AL's DIN 212 high-precision industrial reamers are the epitome of Swiss engineering excellence. Crafted with meticulous attention to detail, these reamers are designed to meet the highest standards of precision and durability. Whether you're in the automotive, aerospace, medical, energy, watch, or precision manufacturing industry, RE-AL's reamers offer unparalleled performance and reliability.

Technical Specifications

DIN 212 reamers are available in diameters ranging from 0.60 mm to 20.05 mm, with increments as fine as 0.01 mm. These reamers are manufactured from HSS-E (High-Speed Steel with Cobalt), ensuring superior hardness and wear resistance. The reamers feature a left-hand spiral (7-8°) and right-hand cutting design, with tolerances of 0/+0.003 to 0.004 mm. The lead angles are available in 60° and 45°, depending on the diameter.

ACUREA Coating Advantage

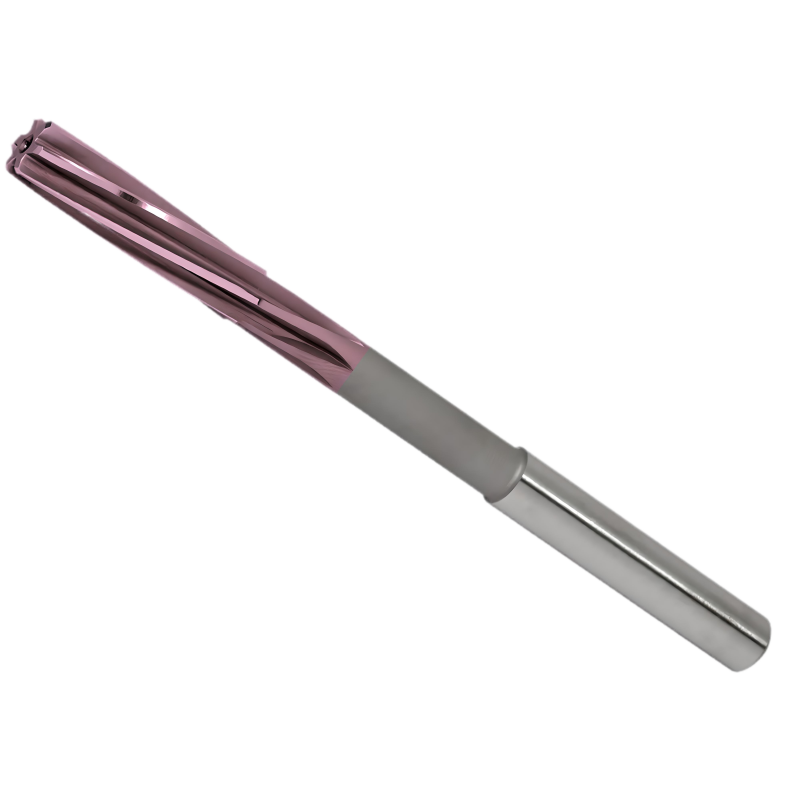

One of the standout features of RE-AL's DIN 212 reamers is the ACUREA coating. This advanced coating significantly enhances the tool's performance by providing exceptional wear resistance and reducing friction. The result is a longer tool life and improved surface finish on the machined parts. Whether you're working with tough materials or require high-speed machining, the ACUREA coating ensures consistent and reliable results.

Applications Across Key Industries

RE-AL's DIN 212 reamers are versatile tools used across various industries:

Automotive: Ideal for precision machining of engine components, transmission parts, and other critical automotive parts.
Aerospace: Ensures high precision and reliability in the manufacturing of aircraft components.
Medical: Perfect for creating precise and smooth surfaces in medical devices and implants.
Energy: Suitable for machining components used in energy production and distribution.
Watch and Precision Manufacturing: Essential for the intricate and precise machining required in watchmaking and other precision industries.

Diameter Options and Tolerances

The reamers are available in a wide range of diameters, from 0.60 mm to 20.05 mm, with H7 tolerance. This extensive range allows for precise machining of various hole sizes, ensuring a perfect fit for your specific application.

Product Details

Brand RE-AL

Reference ACUZ-04.060

In stock 90 Items

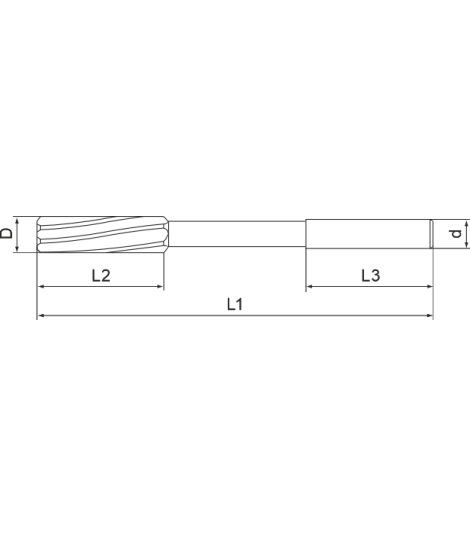

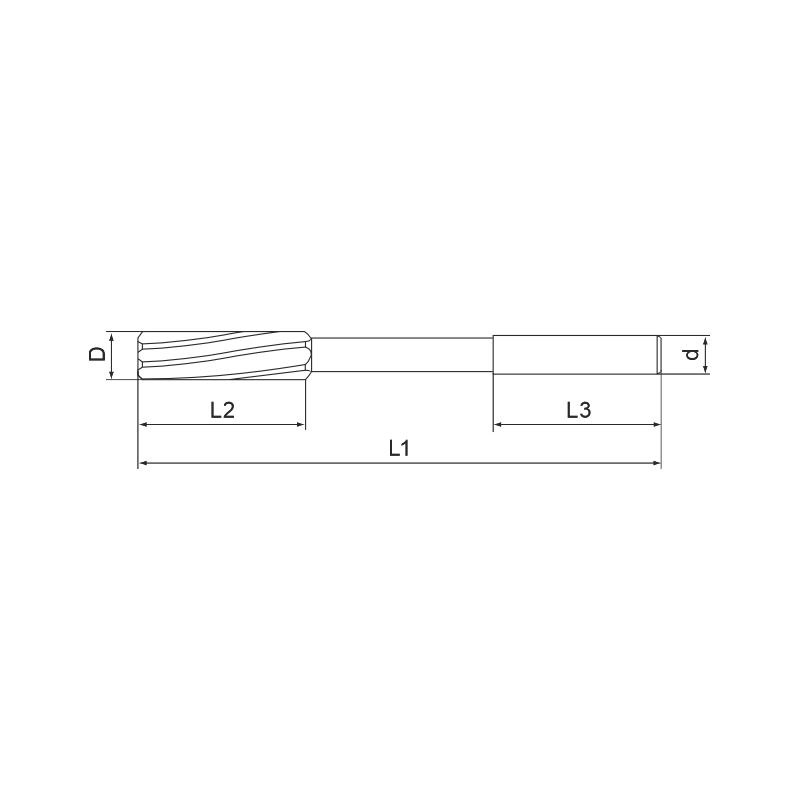

Data sheet

L1 35
L2 10
L3 none
d 1.20
Z 4

Combination table

	Reference	Material	Coating	Tolerance	Norm	Diameter DØ	Price

No results found
	ACUZ-04.060	HSS-E	ACUREA	Standard	DIN 212	04.060	CHF 40.60
	HSSZ-04.060	HSS-E	BLANK	Standard	DIN 212	04.060	CHF 40.60
	TALZ-04.060	HSS-E	TAL	Standard	DIN 212	04.060	CHF 40.60
	HSSZ-04.060-H7	HSS-E	BLANK	H7	DIN 212	04.060	CHF 40.60
	ACUZ-04.060-H7	HSS-E	ACUREA	H7	DIN 212	04.060	CHF 40.60
	TALZ-04.060-H7	HSS-E	TAL	H7	DIN 212	04.060	CHF 40.60
	HSSZ-04.070	HSS-E	BLANK	Standard	DIN 212	04.070	CHF 40.60
	HSSZ-04.070-H7	HSS-E	BLANK	H7	DIN 212	04.070	CHF 40.60
	ACUZ-04.070	HSS-E	ACUREA	Standard	DIN 212	04.070	CHF 40.60
	ACUZ-04.070-H7	HSS-E	ACUREA	H7	DIN 212	04.070	CHF 40.60
	TALZ-04.070	HSS-E	TAL	Standard	DIN 212	04.070	CHF 40.60
	TALZ-04.070-H7	HSS-E	TAL	H7	DIN 212	04.070	CHF 40.60
	HSSZ-04.080	HSS-E	BLANK	Standard	DIN 212	04.080	CHF 40.60
	HSSZ-04.080-H7	HSS-E	BLANK	H7	DIN 212	04.080	CHF 40.60
	ACUZ-04.080	HSS-E	ACUREA	Standard	DIN 212	04.080	CHF 40.60
	ACUZ-04.080-H7	HSS-E	ACUREA	H7	DIN 212	04.080	CHF 40.60
	TALZ-04.080	HSS-E	TAL	Standard	DIN 212	04.080	CHF 40.60
	TALZ-04.080-H7	HSS-E	TAL	H7	DIN 212	04.080	CHF 40.60
	HSSZ-04.090	HSS-E	BLANK	Standard	DIN 212	04.090	CHF 40.60
	HSSZ-04.090-H7	HSS-E	BLANK	H7	DIN 212	04.090	CHF 40.60
	ACUZ-04.090	HSS-E	ACUREA	Standard	DIN 212	04.090	CHF 40.60
	ACUZ-04.090-H7	HSS-E	ACUREA	H7	DIN 212	04.090	CHF 40.60
	TALZ-04.090	HSS-E	TAL	Standard	DIN 212	04.090	CHF 40.60
	TALZ-04.090-H7	HSS-E	TAL	H7	DIN 212	04.090	CHF 40.60
	HSSZ-04.100	HSS-E	BLANK	Standard	DIN 212	04.100	CHF 40.60
	HSSZ-04.100-H7	HSS-E	BLANK	H7	DIN 212	04.100	CHF 40.60
	ACUZ-04.100	HSS-E	ACUREA	Standard	DIN 212	04.100	CHF 40.60
	ACUZ-04.100-H7	HSS-E	ACUREA	H7	DIN 212	04.100	CHF 40.60
	TALZ-04.100	HSS-E	TAL	Standard	DIN 212	04.100	CHF 40.60
	TALZ-04.100-H7	HSS-E	TAL	H7	DIN 212	04.100	CHF 40.60
	HSSZ-04.110	HSS-E	BLANK	Standard	DIN 212	04.110	CHF 40.60
	HSSZ-04.110-H7	HSS-E	BLANK	H7	DIN 212	04.110	CHF 40.60
	ACUZ-04.110	HSS-E	ACUREA	Standard	DIN 212	04.110	CHF 40.60
	ACUZ-04.110-H7	HSS-E	ACUREA	H7	DIN 212	04.110	CHF 40.60
	TALZ-04.110	HSS-E	TAL	Standard	DIN 212	04.110	CHF 40.60
	TALZ-04.110-H7	HSS-E	TAL	H7	DIN 212	04.110	CHF 40.60
	HSSZ-04.120	HSS-E	BLANK	Standard	DIN 212	04.120	CHF 40.60
	HSSZ-04.120-H7	HSS-E	BLANK	H7	DIN 212	04.120	CHF 40.60
	ACUZ-04.120	HSS-E	ACUREA	Standard	DIN 212	04.120	CHF 40.60
	ACUZ-04.120-H7	HSS-E	ACUREA	H7	DIN 212	04.120	CHF 40.60
	TALZ-04.120	HSS-E	TAL	Standard	DIN 212	04.120	CHF 40.60
	TALZ-04.120-H7	HSS-E	TAL	H7	DIN 212	04.120	CHF 40.60
	HSSZ-04.130	HSS-E	BLANK	Standard	DIN 212	04.130	CHF 40.60
	HSSZ-04.130-H7	HSS-E	BLANK	H7	DIN 212	04.130	CHF 40.60
	ACUZ-04.130	HSS-E	ACUREA	Standard	DIN 212	04.130	CHF 40.60
	ACUZ-04.130-H7	HSS-E	ACUREA	H7	DIN 212	04.130	CHF 40.60
	TALZ-04.130	HSS-E	TAL	Standard	DIN 212	04.130	CHF 40.60
	TALZ-04.130-H7	HSS-E	TAL	H7	DIN 212	04.130	CHF 40.60
	HSSZ-04.140	HSS-E	BLANK	Standard	DIN 212	04.140	CHF 40.60
	HSSZ-04.140-H7	HSS-E	BLANK	H7	DIN 212	04.140	CHF 40.60
	ACUZ-04.140	HSS-E	ACUREA	Standard	DIN 212	04.140	CHF 40.60
	ACUZ-04.140-H7	HSS-E	ACUREA	H7	DIN 212	04.140	CHF 40.60
	TALZ-04.140	HSS-E	TAL	Standard	DIN 212	04.140	CHF 40.60
	TALZ-04.140-H7	HSS-E	TAL	H7	DIN 212	04.140	CHF 40.60
	HSSZ-04.150	HSS-E	BLANK	Standard	DIN 212	04.150	CHF 40.60
	HSSZ-04.150-H7	HSS-E	BLANK	H7	DIN 212	04.150	CHF 40.60
	ACUZ-04.150	HSS-E	ACUREA	Standard	DIN 212	04.150	CHF 40.60
	ACUZ-04.150-H7	HSS-E	ACUREA	H7	DIN 212	04.150	CHF 40.60
	TALZ-04.150	HSS-E	TAL	Standard	DIN 212	04.150	CHF 40.60
	TALZ-04.150-H7	HSS-E	TAL	H7	DIN 212	04.150	CHF 40.60
	HSSZ-04.160	HSS-E	BLANK	Standard	DIN 212	04.160	CHF 40.60
	HSSZ-04.160-H7	HSS-E	BLANK	H7	DIN 212	04.160	CHF 40.60
	ACUZ-04.160	HSS-E	ACUREA	Standard	DIN 212	04.160	CHF 40.60
	ACUZ-04.160-H7	HSS-E	ACUREA	H7	DIN 212	04.160	CHF 40.60
	TALZ-04.160	HSS-E	TAL	Standard	DIN 212	04.160	CHF 40.60
	TALZ-04.160-H7	HSS-E	TAL	H7	DIN 212	04.160	CHF 40.60
	HSSZ-04.170	HSS-E	BLANK	Standard	DIN 212	04.170	CHF 40.60
	HSSZ-04.170-H7	HSS-E	BLANK	H7	DIN 212	04.170	CHF 40.60
	ACUZ-04.170	HSS-E	ACUREA	Standard	DIN 212	04.170	CHF 40.60
	ACUZ-04.170-H7	HSS-E	ACUREA	H7	DIN 212	04.170	CHF 40.60
	TALZ-04.170	HSS-E	TAL	Standard	DIN 212	04.170	CHF 40.60
	TALZ-04.170-H7	HSS-E	TAL	H7	DIN 212	04.170	CHF 40.60
	HSSZ-04.180	HSS-E	BLANK	Standard	DIN 212	04.180	CHF 40.60
	HSSZ-04.180-H7	HSS-E	BLANK	H7	DIN 212	04.180	CHF 40.60
	ACUZ-04.180	HSS-E	ACUREA	Standard	DIN 212	04.180	CHF 40.60
	ACUZ-04.180-H7	HSS-E	ACUREA	H7	DIN 212	04.180	CHF 40.60
	TALZ-04.180	HSS-E	TAL	Standard	DIN 212	04.180	CHF 40.60
	TALZ-04.180-H7	HSS-E	TAL	H7	DIN 212	04.180	CHF 40.60
	HSSZ-04.190	HSS-E	BLANK	Standard	DIN 212	04.190	CHF 40.60
	HSSZ-04.190-H7	HSS-E	BLANK	H7	DIN 212	04.190	CHF 40.60
	ACUZ-04.190	HSS-E	ACUREA	Standard	DIN 212	04.190	CHF 40.60
	ACUZ-04.190-H7	HSS-E	ACUREA	H7	DIN 212	04.190	CHF 40.60
	TALZ-04.190	HSS-E	TAL	Standard	DIN 212	04.190	CHF 40.60
	TALZ-04.190-H7	HSS-E	TAL	H7	DIN 212	04.190	CHF 40.60
	HSSZ-04.200	HSS-E	BLANK	Standard	DIN 212	04.200	CHF 40.60
	HSSZ-04.200-H7	HSS-E	BLANK	H7	DIN 212	04.200	CHF 40.60
	ACUZ-04.200	HSS-E	ACUREA	Standard	DIN 212	04.200	CHF 40.60
	ACUZ-04.200-H7	HSS-E	ACUREA	H7	DIN 212	04.200	CHF 40.60
	TALZ-04.200	HSS-E	TAL	Standard	DIN 212	04.200	CHF 40.60
	TALZ-04.200-H7	HSS-E	TAL	H7	DIN 212	04.200	CHF 40.60
	HSSZ-04.210	HSS-E	BLANK	Standard	DIN 212	04.210	CHF 40.60
	HSSZ-04.210-H7	HSS-E	BLANK	H7	DIN 212	04.210	CHF 40.60
	ACUZ-04.210	HSS-E	ACUREA	Standard	DIN 212	04.210	CHF 40.60
	ACUZ-04.210-H7	HSS-E	ACUREA	H7	DIN 212	04.210	CHF 40.60
	TALZ-04.210	HSS-E	TAL	Standard	DIN 212	04.210	CHF 40.60
	TALZ-04.210-H7	HSS-E	TAL	H7	DIN 212	04.210	CHF 40.60
	HSSZ-04.220	HSS-E	BLANK	Standard	DIN 212	04.220	CHF 40.60
	HSSZ-04.220-H7	HSS-E	BLANK	H7	DIN 212	04.220	CHF 40.60
	ACUZ-04.220	HSS-E	ACUREA	Standard	DIN 212	04.220	CHF 40.60
	ACUZ-04.220-H7	HSS-E	ACUREA	H7	DIN 212	04.220	CHF 40.60
	TALZ-04.220	HSS-E	TAL	Standard	DIN 212	04.220	CHF 40.60
	TALZ-04.220-H7	HSS-E	TAL	H7	DIN 212	04.220	CHF 40.60
	HSSZ-04.230	HSS-E	BLANK	Standard	DIN 212	04.230	CHF 40.60
	HSSZ-04.230-H7	HSS-E	BLANK	H7	DIN 212	04.230	CHF 40.60
	ACUZ-04.230	HSS-E	ACUREA	Standard	DIN 212	04.230	CHF 40.60
	ACUZ-04.230-H7	HSS-E	ACUREA	H7	DIN 212	04.230	CHF 40.60
	TALZ-04.230	HSS-E	TAL	Standard	DIN 212	04.230	CHF 40.60
	TALZ-04.230-H7	HSS-E	TAL	H7	DIN 212	04.230	CHF 40.60
	HSSZ-04.240	HSS-E	BLANK	Standard	DIN 212	04.240	CHF 40.60
	HSSZ-04.240-H7	HSS-E	BLANK	H7	DIN 212	04.240	CHF 40.60
	ACUZ-04.240	HSS-E	ACUREA	Standard	DIN 212	04.240	CHF 40.60
	ACUZ-04.240-H7	HSS-E	ACUREA	H7	DIN 212	04.240	CHF 40.60
	TALZ-04.240	HSS-E	TAL	Standard	DIN 212	04.240	CHF 40.60
	TALZ-04.240-H7	HSS-E	TAL	H7	DIN 212	04.240	CHF 40.60
	HSSZ-04.250	HSS-E	BLANK	Standard	DIN 212	04.250	CHF 40.60
	HSSZ-04.250-H7	HSS-E	BLANK	H7	DIN 212	04.250	CHF 40.60
	ACUZ-04.250	HSS-E	ACUREA	Standard	DIN 212	04.250	CHF 40.60
	ACUZ-04.250-H7	HSS-E	ACUREA	H7	DIN 212	04.250	CHF 40.60
	TALZ-04.250	HSS-E	TAL	Standard	DIN 212	04.250	CHF 40.60
	TALZ-04.250-H7	HSS-E	TAL	H7	DIN 212	04.250	CHF 40.60
	ZZZACUZ-04.005	HSS-E	ACUREA	Standard	DIN 212	04.005	CHF 40.60
		HSS-E	BLANK	Standard	DIN 212	04.005	CHF 40.60
		HSS-E	TAL	Standard	DIN 212	04.005	CHF 40.60
		HSS-E	BLANK	H7	DIN 212	04.005	CHF 40.60
		HSS-E	ACUREA	H7	DIN 212	04.005	CHF 40.60
		HSS-E	TAL	H7	DIN 212	04.005	CHF 40.60
